Heavy-Duty Manure Spreader Chains Built to Perform
Manure Spreader Chains Built for Real-World Use

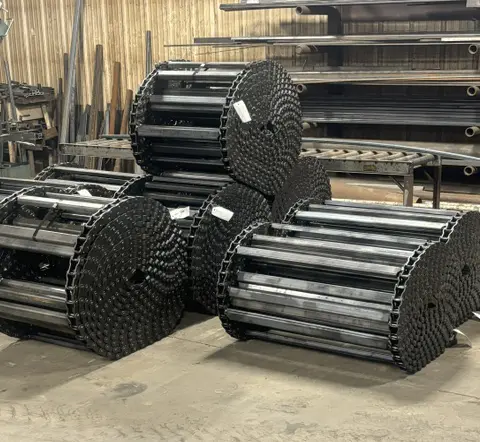

Manure spreader apron chains are designed to move heavy loads consistently in tough agricultural environments. Whether you’re replacing worn-out chains or upgrading for better performance, the right chain makes all the difference.
At Excel Machine & Mfg., we manufacture high-quality manure spreader chains using durable materials and proven designs—built to keep your equipment running efficiently.
Manure Spreader Chain Options & Specifications
Engineered for strength, durability and compatibility with leading equipment.

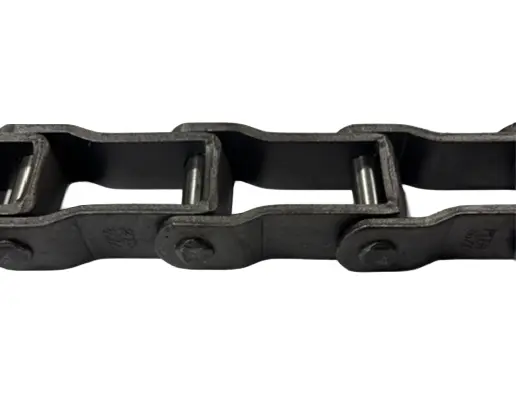

667X Pintle Apron Chain (Standard Duty)
Specs
Key Benefits:
- Reliable performance in everyday applications
- Excellent durability for standard workloads
- Cost-effective replacement option
Core Specs:
- Pitch: 2.250″
- Ultimate Strength: 21,000 lbs
- Sidebar Height: 0.938″
- Sidebar Thickness: 0.170″
- Pin Diameter: 0.437″
- Approx. Overall Width: 2.156”
- Max. Sprocket Thickness: 0.875”
- Links Per Foot: 5.3
- Weight: 1.92 lbs/ft

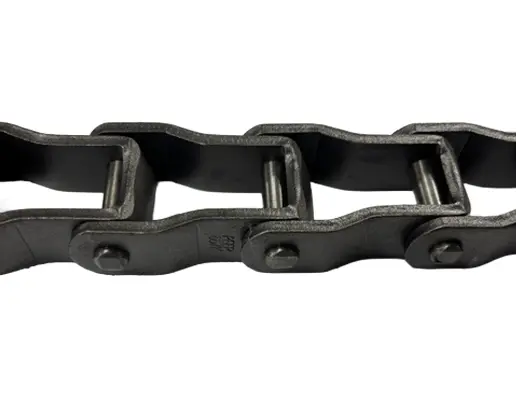

667K Pintle Chain (Corrosion-Resistant)
Specs
Key Benefits:
- Improved resistance to rust and corrosion
- Ideal for manure with higher moisture content
- Extended lifespan in harsh conditions
Core Specs:
- Pitch: 2.250″
- Ultimate Strength: 25,000 lbs
- Sidebar Height: 1.062″
- Sidebar Thickness: 0.200″
- Pin Diameter: 0.437″
- Approx. Overall Width: 2.359”
- Max. Sprocket Thickness: 1.000”
- Links Per Foot: 5.33
- Weight: 2.56 lbs/ft

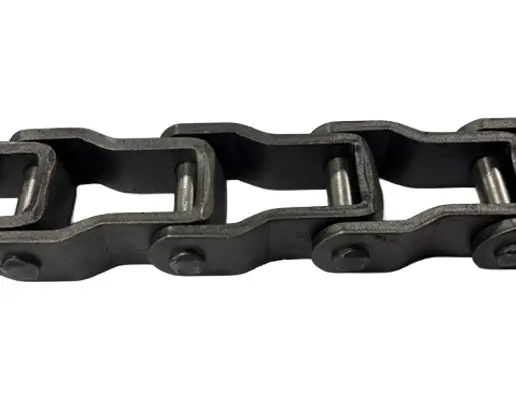

667XH Heavy-Duty Pintle Chain
Specs
Key Benefits:
- Increased strength and durability
- Ideal for high-load spreaders
- Longer service life under stress
Core Specs:
- Pitch: 2.250″
- Ultimate Strength: 32,000 lbs
- Sidebar Height: 1.050″
- Sidebar Thickness: 0.225″
- Pin Diameter: 0.465″
- Approx. Overall Width: 2.414”
- Max. Sprocket Thickness: 1.000”
- Links Per Foot: 5.33
- Weight: 2.8 lbs/ft

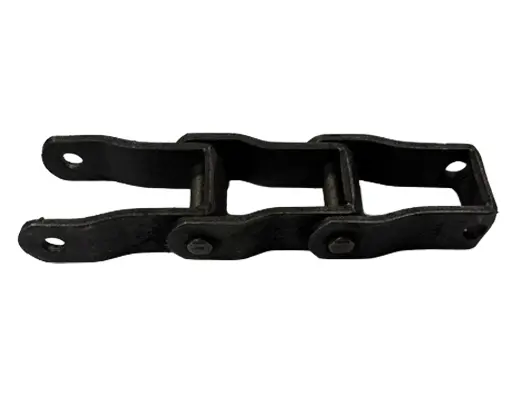

662 Pintle Chain (Light-Duty Agricultural Chain)
Specs
Key Benefits:
- Lightweight design helps reduce overall system weight and improve efficiency
- Dependable strength for light- to medium-duty agricultural applications
- Cost-effective replacement chain with proven durability and performance
Core Specs:
- Pitch: 1.664″
- Ultimate Strength: 12,500 lbs
- Sidebar Height: 0.720″
- Sidebar Thickness: 0.125″
- Rivet Diameter: 0.281″
- Overall Width: 1.720″
- Maximum Sprocket Thickness: 0.750″
- Weight Per 10 ft: 10.5 lbs
- Approx. Weight Per Foot: 1.05 lbs

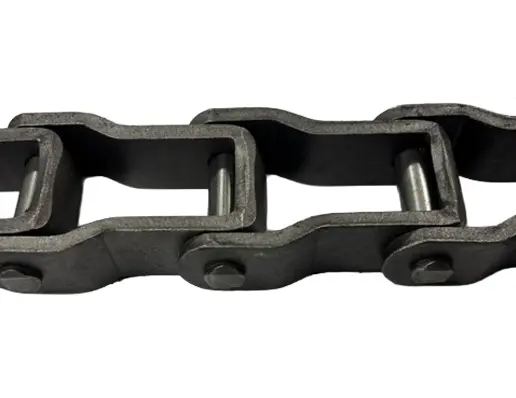

88C Pintle Chain (Continuous Duty)
Specs
Key Benefits:
- Excellent wear resistance
- Ideal for continuous-use systems
- Strong performance in harsh conditions
Core Specs:
- Pitch: 2.609″
- Ultimate Strength: 33,000 lbs
- Sidebar Height: 1.125″
- Sidebar Thickness: 0.250″
- Pin Diameter: 0.500″
- Approx. Overall Width: 2.842”
- Max. Sprocket Thickness: 1.000”
- Links Per Foot: 4.6
- Weight: 3.3 lbs/ft

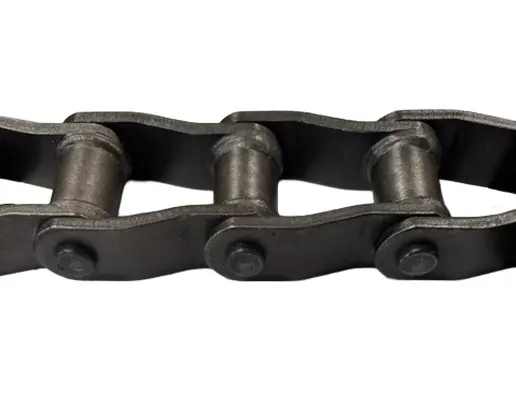

WR-78 Loose Fit Chain (Industrial / Ag Crossover)
Specs
Key Benefits:
- Higher tensile strength than many pintle chains
- Excellent for conveyor-style applications
- Performs well in aggregate and industrial crossover use
Core Specs:
- Pitch: 2.609″
- Ultimate Strength: 33,000 lbs
- Sidebar Height: 1.250″
- Sidebar Thickness: 0.250″
- Pin Diameter: 0.500″
- Approx. Overall Width: 3.000”
- Max. Sprocket Thickness: 1.000”
- Links Per Foot: 4.6
- Weight: 4.1 lbs/ft

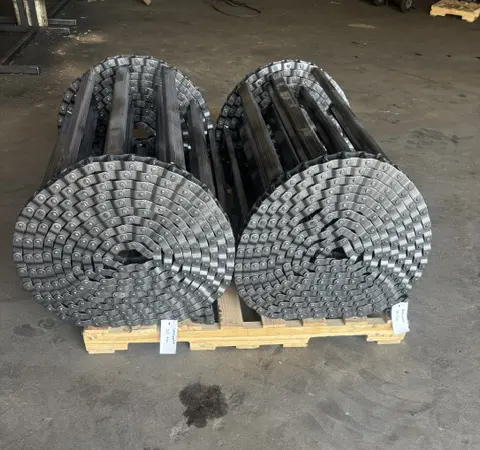

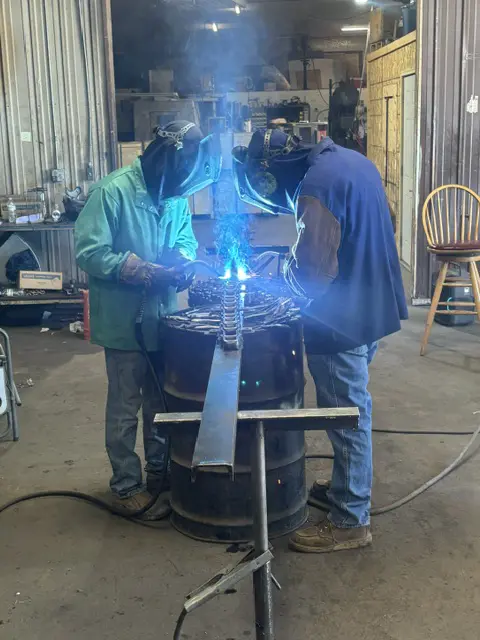

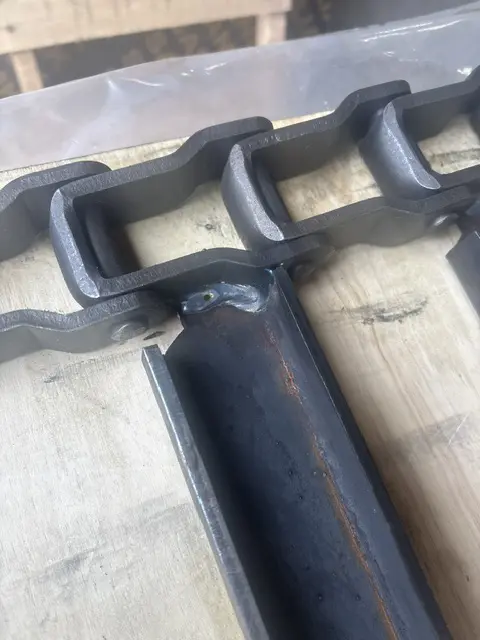

Custom Apron Chains (Built to Spec)
Specs
Key Benefits:
- Built for any make or model
- No minimum order
- Fast turnaround (often next-day)
- Optimized for performance and fit
Capabilities:
- Custom lengths and configurations
- Slat spacing and attachment options
- Built for unique or legacy equipment
Built Better. Delivered Faster.
Fast Turnaround
Next-day builds when possible
Competitive Pricing
Often significantly lower than OEM
High-Quality Materials
Built for durability
Custom Manufacturing
Built to your exact specs
Choosing the Right Manure Spreader Chain
Selecting the right chain depends on your spreader type, load requirements and operating conditions.
Key considerations:
- Equipment make and model
- Load size and material
- Frequency of use
- Desired lifespan
Our team can help you identify the right replacement or build a custom solution.
Trusted by Farmers, Dealers & Repair Shops
Built for Performance and Value
Years Experience
Fast Turnaround
Next-day builds when possible
Significant Savings
Competitive pricing vs OEM
Manure Spreader Chain FAQs
What chain do I need for my manure spreader?
Provide your equipment details and we’ll help match the correct chain.
How long do manure spreader chains last?
Lifespan varies based on usage, load and maintenance.
Do you offer custom chains?
Yes, we can build chains for any application or equipment.
How fast can I get a chain?
We offer fast turnaround, including next-day builds when possible.
